Ground Solar Mounting System PGT4

Solar Mounting System Details

The MRac PGT4 Ground Solar Mounting System, an enhanced version of the GT4, is designed to accommodate medium to large-scale solar photovoltaic projects. The main beams and posts have been re-optimized for a superior design using less material, while maintaining a strong resistance to wind and snow loads. The system features a specially designed Anchor Plate, which enables minor on-site adjustments, providing adaptability to diverse locations. The patented and certified design of the system ensures project safety and expedites the installation process.


Solar Mounting Structure


solar mounting rack


Solar Mounting Advantages

  • Pre-assembled Components Save Onsite Installation Time

    Solution design case by case, most components pre-assembled in factory, no onsite cut and drill request, saving the onsite installation time and cost.

  • Quick Modular Kit Fixation

    Most of the components are designed as modular kit with anodized aluminum to further ensure easy and fast construction on site.

  • Flexibility and Adjustability

    The structure can be adjusted with some tolerance with east-west, west-south and south-north directions, assuring flexible on-site installation to achieve best yield for solar modules.

  • No Drill on Portrait Beam

    It improves the strength of the system to fix the portrait beam onto the post by special designed clamps, with force at the same direction of the gravity.

Solar Mounting Installation Procedures

solar panel swivel mount

solar panel pole mount design
quick mount pv quick rack
best solar racking system

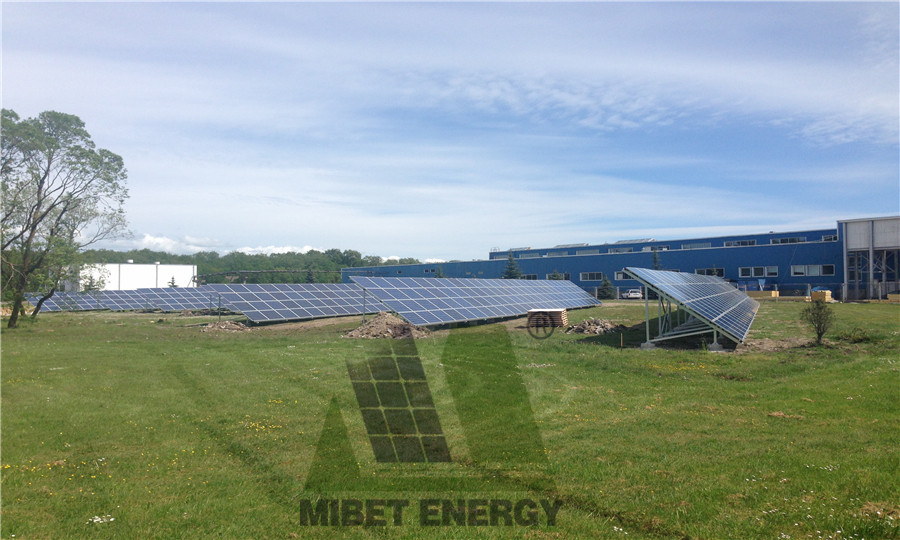

Project Reference
